Product Dimensions 1.31"h x 1.31"w x 3"d
The RFBTAUX allows streaming audio using a Bluetooth™ enabled device through a factory Aux input.Read More

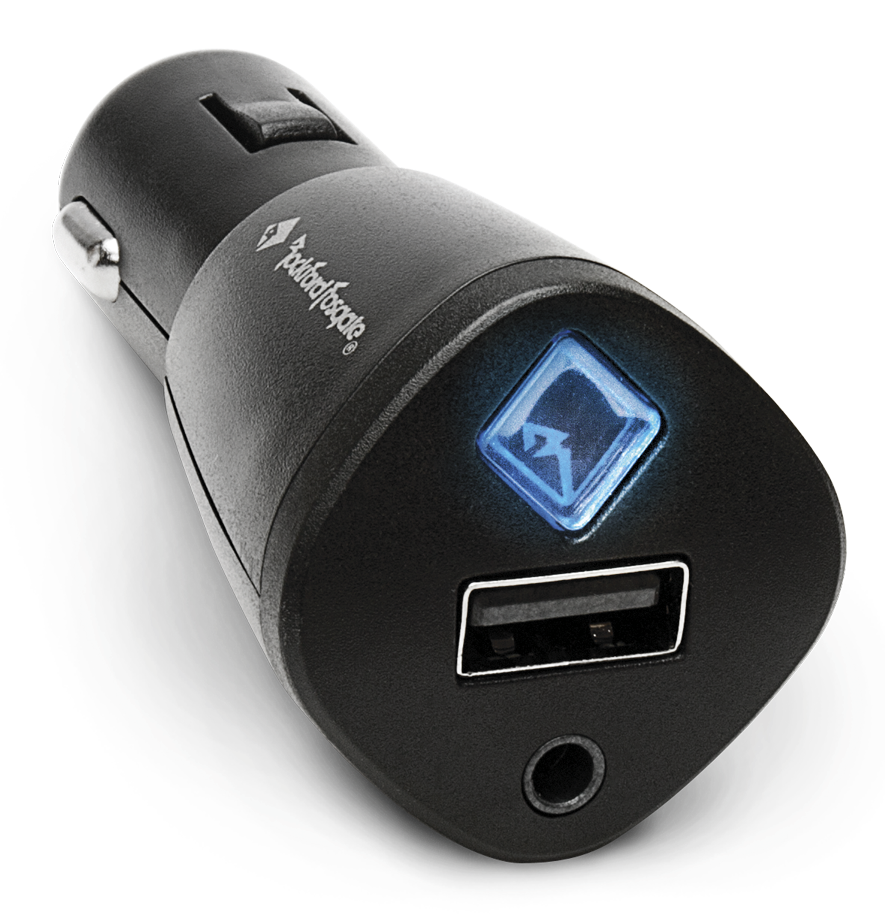

The RFBTAUX universal Bluetooth™ adapter allows to wirelessly stream media (music library, Pandora, Rhapsody, etc) from a Bluetooth™ enabled device through a factory Auxiliary input powered by the vehicle’s 12V accessory socket. Easy 1-button pairing function binds to Bluetooth™ enabled device and chimes on subsequent connections. Supplied 1/8” (3mm) cable sends audio through the radio’s Aux input jack. Features USB charging (cable not included) and 5 foot coiled cable. Compatible with most Bluetooth™ devices, including smartphones, tablets, and laptops.
Bluetooth™ streaming receiver
Plugs into 12V dash outlet (cigarette lighter)
1/8" (3.5mm) stereo audio output
5VDC USB charging output (USB cable not included)
Simple one button pairing (illuminated Diamond-R logo)
Auto connect after initial pairing
Class 2 output power
Bluetooth™ V3.0+EDR
5' (1.5m) coiled cable with 1/8" (3.5mm) audio jack included
Compatible with Apple & Android Bluetooth™ devices
1 Year Warranty
Wirelessly stream audio to your unit with any compatible Bluetooth™ device.
General Specs | |
| Color | Black |
| Width (in.) | 1.31 |
| Width (cm) | 3.33 |
| Depth (in.) | 3 |
| Depth (cm) | 7.62 |
| Height (in.) | 1.31 |
| Height (cm) | 3.33 |
| Weight Kilogram | .14 |
| Manufacturer Warranty | 1 Year |
| Voltage | 9-16 |
General | |
| USB Charging | 5.1V DC @ 1A |
| LED Indicators | Power: Left Blinking Blue, Pairing: Left/Right Blinking Blue, Connected: Solid Blue |
| Signal Output | 2-ch audio via 1/8" (3.5 mm) jack |
| Output Voltage | 800 mV |
| THD+N | <1.0 |
| Signal-to-Noise | >90 dB (DAC), >80 dB (Max Output) |
| Mounting | Cigarette lighter |
| Signal Processing | Bluetooth™ Profile: A2DP |
| Processor Type | Streaming Device |
| Signal Input | Wireless Bluetooth |
| Frequency Response | 20 Hz - 20 kHz |
