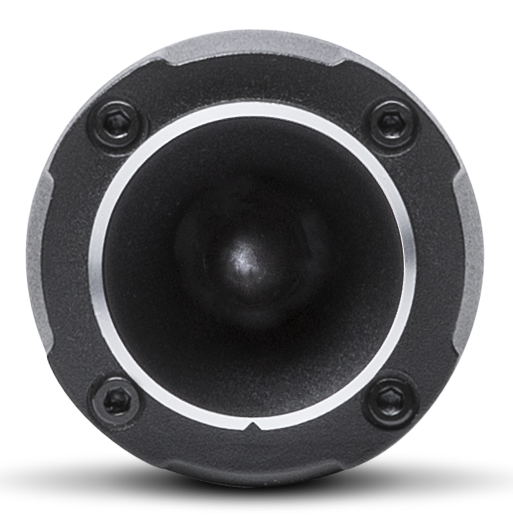

The PP4-NT is a Punch Pro 1" neodymium 4-ohm tweeter designed for SPL systems. Its smaller size allows for use in compact areas while still producing very loud output.Read More
The PP4-NT Punch Pro is a 1" tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The neodymium motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.
High efficiency horn tweeter
Aluminum diaphragm
Aluminum phase plug
High temp Nomex former voice coil
Die cast aluminum frame
All Metal Input Spring Terminal Connection
Neodymium motor structure
Built-in 6dB/Octave crossover
Removable mounting flange
Mounting hardware included
PP4-X and PP8-X crossover compatible
Sold as individual units (not in pairs)
1 Year Warranty
Klippel is a speaker certification program allowing us to deliver the best possible speakers.
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
General Specs | |
| RMS Power Handling (Watts) | 50 |
| Peak Power Rating (Watts) | 100 |
| Impedance | 4 Ohms |
| Water Resistant | No |
| Mounting Hardware Included | Yes |
| Shallow Mount | No |
| Manufacturer Warranty | 1 Year |
General | |
| Voice Coil Diameter (in/mm) | 1" (25 mm) |
| Speaker Type | Tweeter |
| Tweeter Size (Nominal Diameter) | 1" |
| Tweeter Mounting Depth | 2.57" (65.8 mm) |
| Crossover | 4kHz @ 6dB/Octave |
| Sensitivity (dB @ 1W/1M) | 105 |
| Mounting Hardware | Yes |
| Power Handling (RMS) | 50 Watts RMS, 100 Watts Max |
| Tweeter Mounting Diameter | Large Trim Ring: 2.52" (64 mm), Small Trim Ring: 1.79" (45.5 mm) |
| Nominal Impedance (Ohms) | 4-Ohm |
| Frequency Response (Hz) | 4kHz - 20kHz |
| Sensitivity (dB @ 1W/1M) | 105 |
| CEA-2031 Compliant | CEA-2031 Guidelines |
