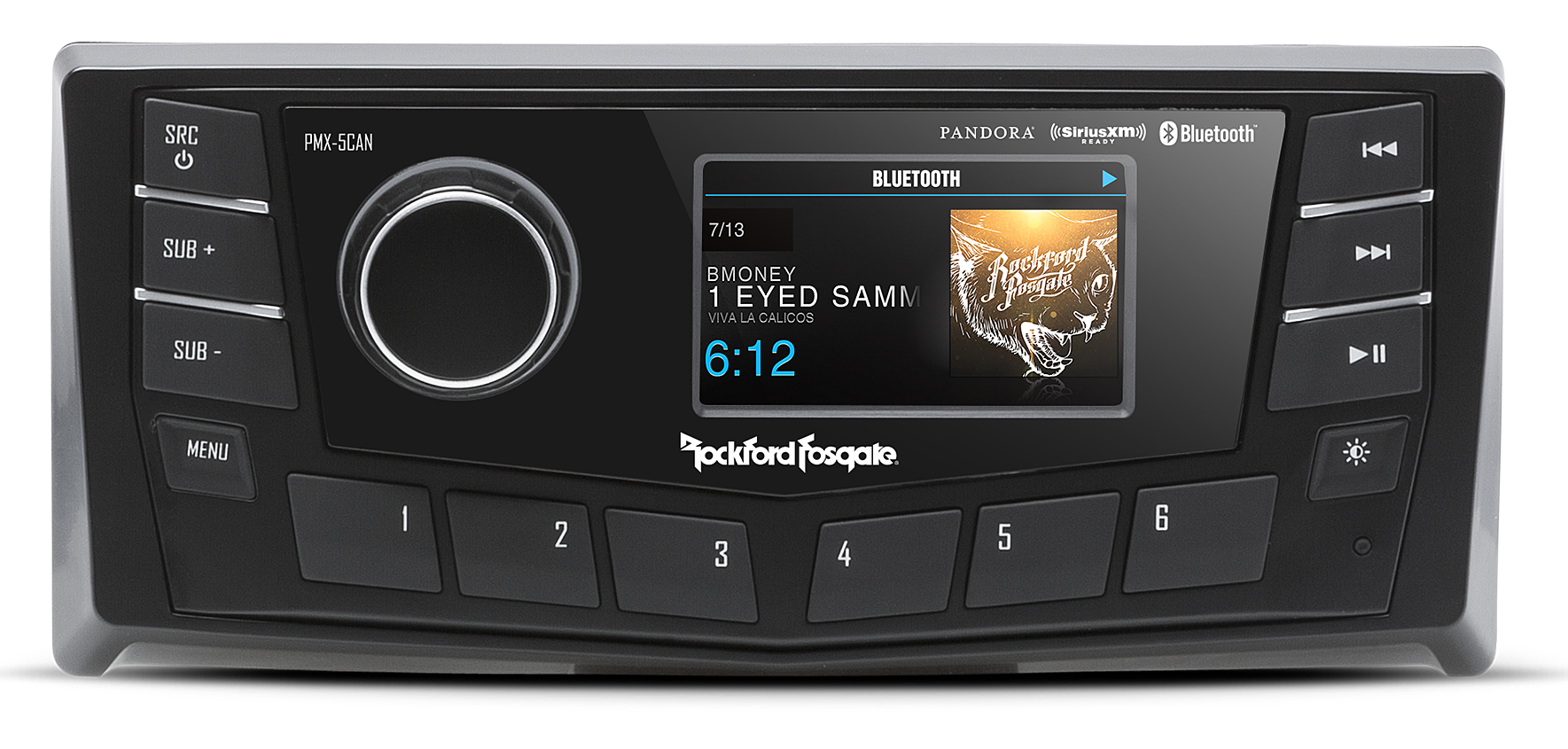

Rockford Fosgate® Punch Marine AM/FM/WB Digital Media Receiver 2.7" Display
At a Glance
The PMX-5CAN is an AM/FM/WB tuner and digital media receiver with 2.7" full color display with CAN bus functionality. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.Read More
Get to know this product.
Product Overview
Product Overview
The PMX-5CAN digital media receiver is designed for marine and motorsports systems.
The PMX-5CAN features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such as SiriusXM and Pandora capabilities, Bluetooth audio steaming with album art support for Apple and Android products and true 2 zone/2 source control, this unit becomes a true command center of any system.
Output flexibility comes a 4x50W @ 2ohm internal amplifier or dual zone output RCA's allowing the addition of after-market amplifiers for more power and output. Add in the EEPROM memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need. The PMX-5CAN also features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor (see Accessories tab.)
ISO8846/SAE J1171 Ignition Protection Certified
Stainless Steel Rear Chassis
Steering Wheel Control Interface Compatible
Pandora Internet Radio
SiriusXM-Ready™
A2DP and AVRCP Bluetooth Wireless Streaming
FCC, CE, IC, and C-Tick Certified
Multi Region Radio Frequencies
Low Voltage Warning Alert
AUX and USB Inputs with USB Charging
On Board Punch EQ Control
Independent Subwoofer Level Control
Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
IPX6 Marine Grade
7-Band Graphic EQ
2.7" full color display w/ auto dimming backlightning
Zone Control: 2 Zone / 2 Source (F/R/S + F)
AM / FM / WB Tuner
CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
Compatible with a Multi-Funtion Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
*Antenna not included
2-Year Warranty
Element Ready™ - Source Units
These source units are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.
SiriusXM-Ready®
This radio is ready to accept SiriusXM® programming.
Made for iPod/iPhone
This device supports the Apple "Made for iPod/iPhone" protocol.
Pandora®
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
Built In Bluetooth®
Built In Bluetooth®
Made for Android
This device supports the Google "Made for Android" protocol.
USB Playback
This source unit supports playback from a USB device.
ASTM B117 & D4329 Tested
ASTM B117 & D4329 Tested
IPX6 Water Intrusion Rating
IPX6 Water Intrusion Rating
CANbus
CANbus allows communication with other devices.
Useful Documents
Specifications
General Specs | |
| Faceplate Style | In-Dash |
| Car Stereo Din Size | Double |
| Touchscreen | No |
| CD Player | No |
| DVD Player | No |
| Satellite Radio Ready | Yes |
| GPS | No |
| Aux Input | Yes |
| Impedance | 2 Ohms |
| Bluetooth Capable | Yes |
| Android Capable | Yes |
| Carplay Capable | No |
| Water Resistant | No |
| Compatible Devices | Android/iOS |
| Color | Black |
| Manufacturer Warranty | 2 Year |
General | |
| FM Tuner Frequency Range | 87.9-107.9 MHz |
| FM Tuner Sensitivity | 8 dB |
| AM Tuner Usable Sensitivity | 40 dB |
| RCA Output Voltage | 4V |
| Operating Voltage | 10.5 V - 16 V |
| Fuse Rating | 15 A |
| Media Player Audio Format Compatibility | MP3, WMA |
| Speaker Outputs (Yes/No) | Yes |
| Made for iPod Models | iPod Touch (5th generation), iPod Touch (4th generation), iPod Nano (7th generation), iPod Nano (6th generation) |
| Android Compatibility | Bluetooth® Only |
| Device Type | Digital-Media Receiver |
| SiriusXM-Ready® (Yes/No) | Yes, Requires SXV300 |
| Pandora® Internet Radio (Yes/No) | Yes |
| RCA Frequency Response | 87.5 MHz - 107.9 MHz |
| WB Tuner Frequency Range | 162.40 - 162.55 (US & Canada) |
| Tuner Number Of Presets | 18 FM / 12 AM / 6 WB |
| USB Output Current | 1A |
| USB Charging (Yes/No) | Yes |
| Frequency Response | 20 Hz - 20 kHz |
| Apple®/Android™ Compatible (Yes/No) | Yes |
| AM Tuner Frequency Range | 530 kHz - 1710 kHz |
| RCA Output Impedance | 500Ω |
| Speaker Impedance | 2-Ohms |
| Power Output | 50W x 4 @ 2Ω Peak, ≤1.0% THD+N |
| Power Rating | 25W x 4 @ 4Ω RMS |
| CEA-2006 | CEA-2006 Guidelines |
| Width | 8" (20.3cm) |
| Face Depth | 1.5" (3.8cm) |
| Mount Depth | 7.1" (18.2cm) |
| Height | 3.5" (8.9cm) |
| Chassis to Face Top | 0.9" (2.3cm) |
| Chassis to Face Bottom | 0.59" (1.5cm) |
| USB Capacity | 32Gb max, 999 Folders max, 999 Songs max |
| Clock (Yes/No) | No |
| Display Size | 2.7” Color TFT |
| Bluetooth® (Yes/No) | Yes, 3.0+EDR, A2DP 1.3 |
| USB Version | 2.0 |
| Steering Wheel Control Ready (Yes/No) | Yes |
| Multi-Zone/Multi-Source (Yes/No) | Yes |
| Compatible Remotes | PMX-1R, PMX-0R, (3 Remote Limit, 100 ft Total Wired Distance) |
| AUX Input (Yes/No) | Yes |
