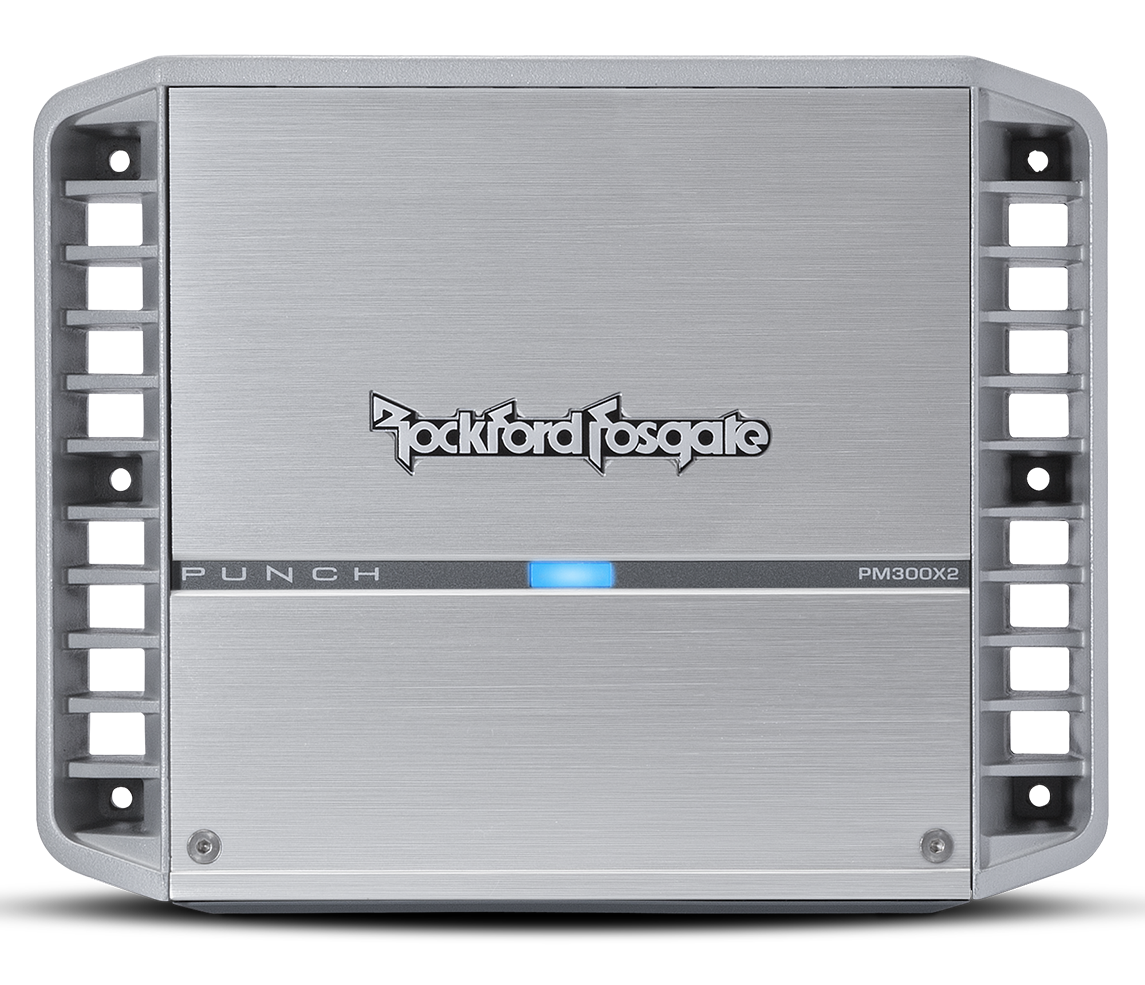

Rockford Fosgate® Punch Marine 300 Watt 2-Channel Amplifier

Product Overview

The PM300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the PM300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.

High level input capable with Auto Turn-On circuit

RCA pass-thru outputs

Features C.L.E.A.N. Set-up

Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)

12dB/octave Butterworth crossover

On-board Punch EQ with +18dB boost @ 45Hz

Muted turn on

Stealth top mounted control panel

Cast aluminum heatsink

Short circuit protection

Over current protection

Marine grade two part epoxy coating on circuit boards

Marine grade stainless steel hardware

2-Year Warranty

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Element Ready™ - Amps

These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.

TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
