Product Dimensions 2.38"h x 7.76"w x 11.03"d

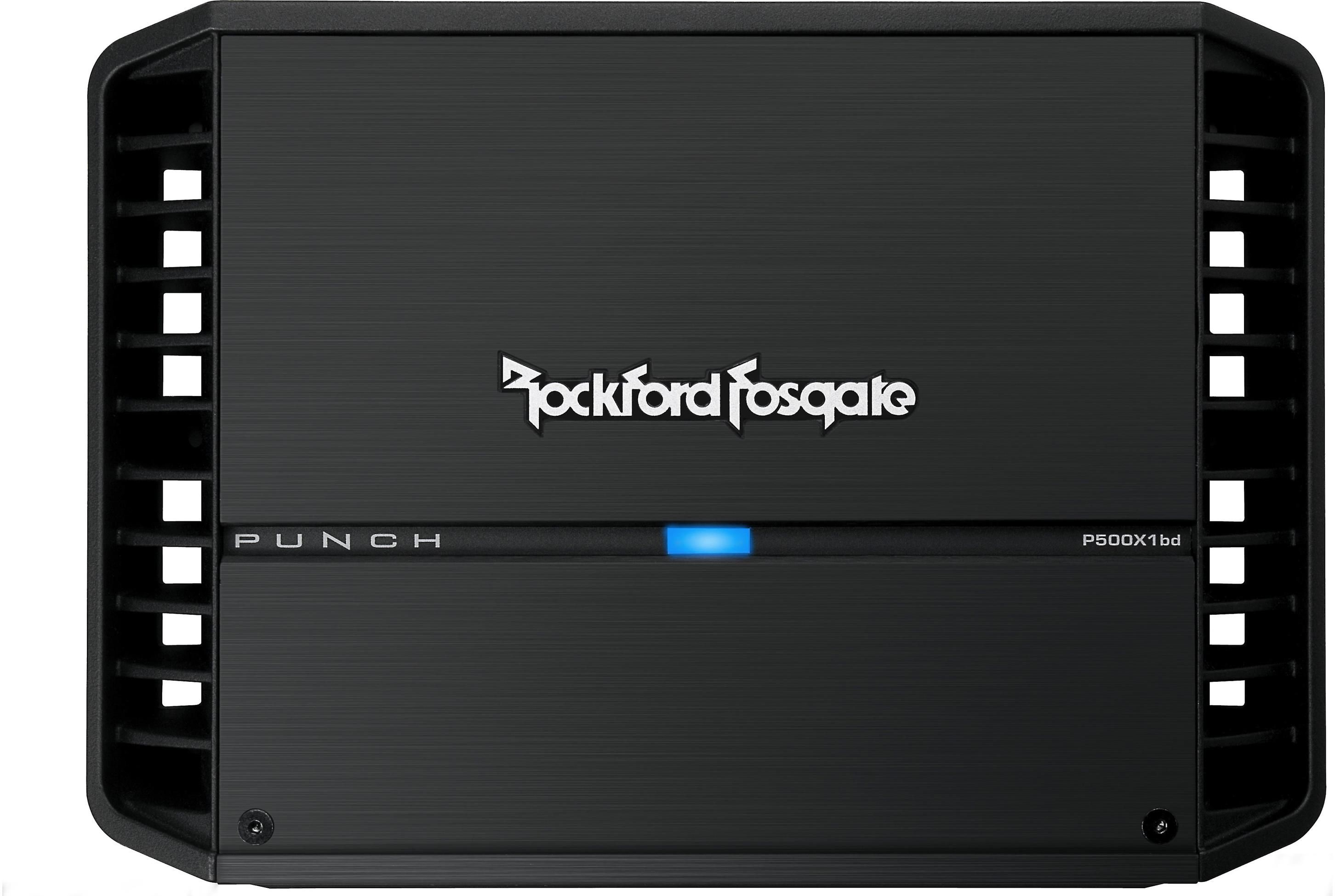

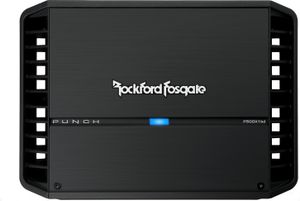

The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.Read More
With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
RCA pass-thru outputs
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz
Muted turn on
Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
Infrasonic filter
1 Year Warranty
General Specs | |
| Amplifier Channels | Mono Block |
| RMS Power Handling (Watts) | 500 |
| Impedance | 1 - 4 Ohms |
| Minimum Impedance Unbridged | 1 Ohm |
| Number Of Inputs | 1 |
| Digital Input | No |
| Speaker Level Input | Yes |
| Number Of Outputs | 2 |
| Preamp Outputs | 1 |
| Amplifier Output (Watts) | 500 |
| Bluetooth Capable | No |
| Water Resistant | No |
| Shallow Mount | No |
| Color | Black |
| Width (in.) | 7.76 |
| Depth (in.) | 11.03 |
| Height (in.) | 2.38 |
| Product Weight (lbs.) | 10.8 |
| Collection | Punch |
