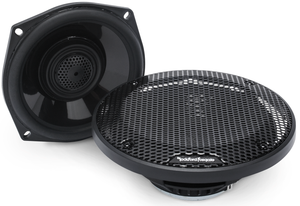

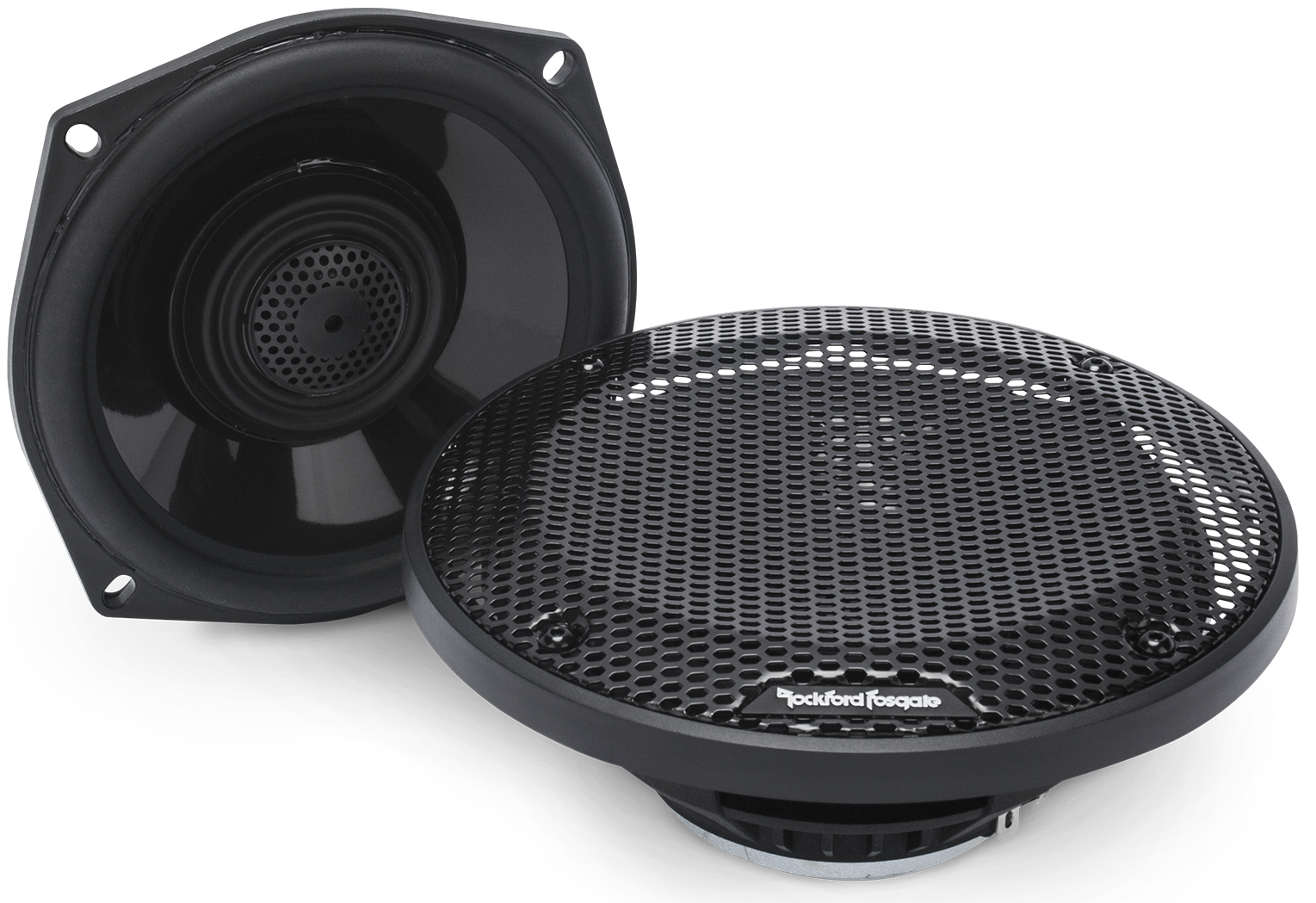

The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson® motorcycles in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.
Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
Element Ready design that is weather and water resistant
Neodymium Tweeter with Integrated Phase Plug and ASA Grill
Ultra-Efficient 25mm Proprietary Film Dome Tweeter
Carbon-Fiber Re-Inforced Polypropylene Cone
Santoprene VAST Surround
Co-Molded Cone and Surround
Santoprene Front Isolation Spider
Poly-Cotton Spider
High Power 35mm Voice-Coil
Ultra-Efficient Neodymium Ring Magnet Motor
Ultra-High Temperature Glass Re-Inforced Polymer Frame
Integrated Spade Terminals
Integrated 6dB Crossover with High Power Polyester Capacitor
Low Profile Coaxial Tweeter Design
Discreet (Hidden) Tweeter Wire
Designed for 1998-2013 Harley-Davidson® Rear Tour-Pak Locations
NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
2-Year Warranty
VAST Surround (speakers)
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
CEA-2031 (speakers)
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Element Ready - Motorcycle Solutions
These models are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.
Anodized Aluminum Voice Coil Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
*Visual is for representative purposes only.
