The T3-BMW1 is a direct fit replacement/upgrade speaker system for select BMW® models. Speaker features a BMW® factory connector, 1” silk tweeter and glass fiber woofer.Read More

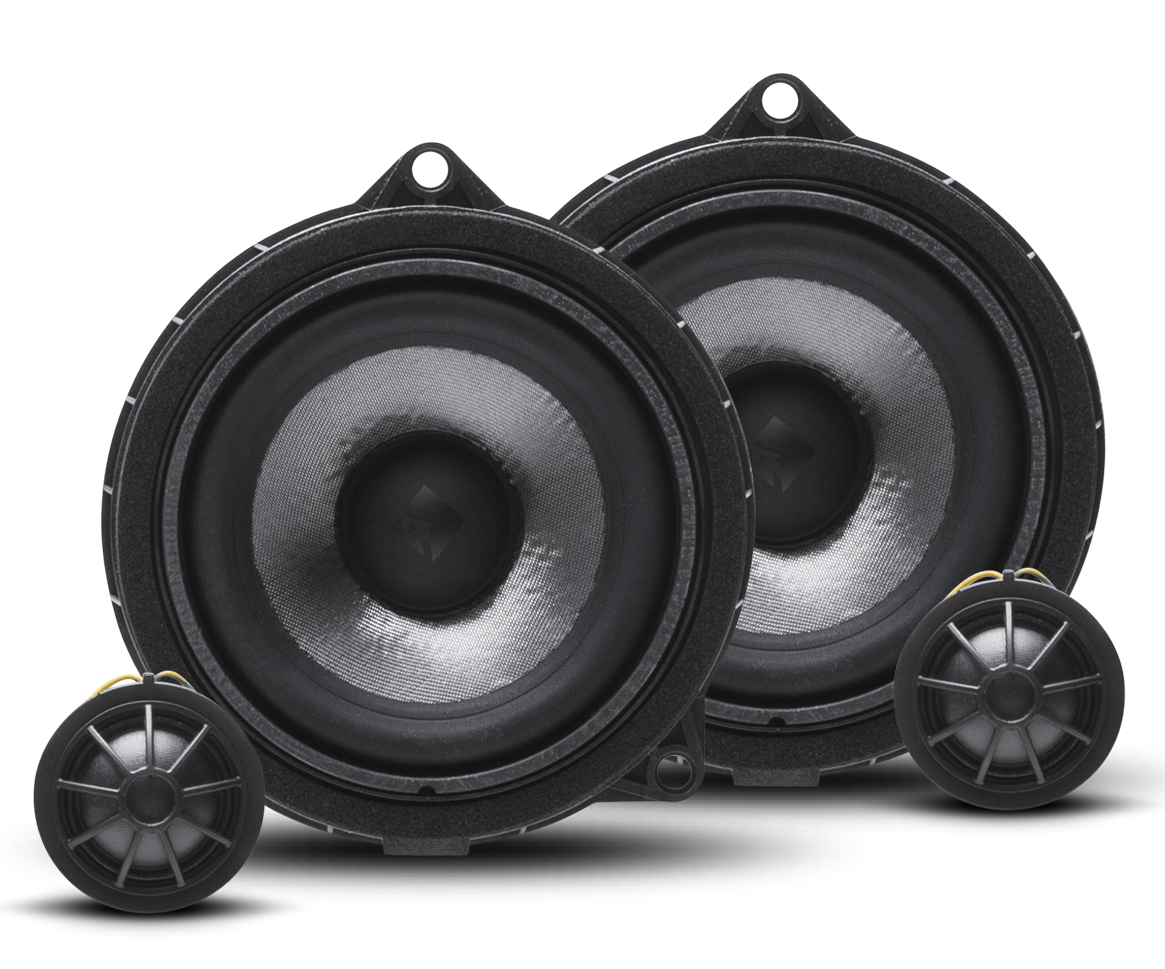

The T3-BMW3 is a full-range direct fit speaker intended to replace or upgrade factory models installed in select BMW® vehicles (see compatibility chart). The speaker is comprised of a 1” silk tweeter with neodymium motor and a woofer with a glass fiber cone. Features an inline passive crossover and BMW® factory connector for easy plug-n-play operation. Made in Germany.
OEM Frame Style-3
4" 2-way component system
Glass fiber sandwich cone with Nomex honeycomb core
Poly-Urethenane Dust Cap
SBR surround and Bimax spider
Glass fiber reinforced poly-carbonate frame
Neodymium ring style magnet
25mm voice coil with high temp aluminum former
Tweeter: Silk diaphragm and surround
Tweeter: 25mm voice coil
Tweeter: Neodymium motor structure
Tweeter: Glass fiber reinforced polyamid frame
Direct plug-in to factory BMW® harness
In-line external crossover
3 models available (depending upon BMW® series)
2-Year Warranty
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel is a speaker certification program allowing us to deliver the best possible speakers.
General Specs | |
| Car Speaker Size | 4 |
| RMS Power Handling (Watts) | 50 |
| Peak Power Rating (Watts) | 100 |
| Impedance | 4 Ohms |
| Compatible Car Make Model | BMW |
| Water Resistant | No |
| Mounting Hardware Included | Yes |
| Shallow Mount | No |
| Manufacturer Warranty | 1 Year |
General | |
| Nominal Impedance (Ohms) | 4.0" |
| CEA-2031 Compliant | CEA-2031 Guidelines |
| Frequency Response (Hz) | 75Hz - 20kHz |
| Tweeter Size (Nominal Diameter) | 1.0" (25 mm) |
| Midrange Size (Nominal Diameter) | 4.0" |
| Speaker Type | Component System |
| Midrange Mounting Depth | 1.66" (42.3 mm) |
| Tweeter Mounting Depth | 0.375" (9.5 mm) |
| Sensitivity (dB @ 1W/1M) | 87 dB |
| Vehicle Compatibility | 1-SERIES 2011-2014, 3-Door (F21) Rear Window Shelf, 5-Door (F20) Rear Window Shelf; 5-SERIES 2010-2014, Sedan (E60) Front, Rear, Touring (E61) Front, Rear, Sedan (F10) Rear Window Shelf, Touring (F11) Rear Roofliner; 6-SERIES 2011-2014, Coupe (F13) Rear Window Shelf; X1 2009-2012, SUV (E84) Rear Window Shelf; X3 2010-2014, SUV (F25) Pillar; X5 2006-2014, SUV (E70) Front, Rear; X6 2008-2014, SUV (E71) Front, Rear; Z4 2009-2014, Roadster (E89) Front |
| Crossover | External inline tweeter crossover |
| Power Handling (RMS) | 50 Watts RMS, 100 Watts Max |
| Shipping Weight | 2.9 Lbs. (1.31 Kg.) |
| Mounting Hardware | Yes; Includes (1) pair tweeter bezels |
