The PMX-ANT is an amplified antenna for use with Rockford Fosgate PMX source units to boost radio signals in distant areas.Read More

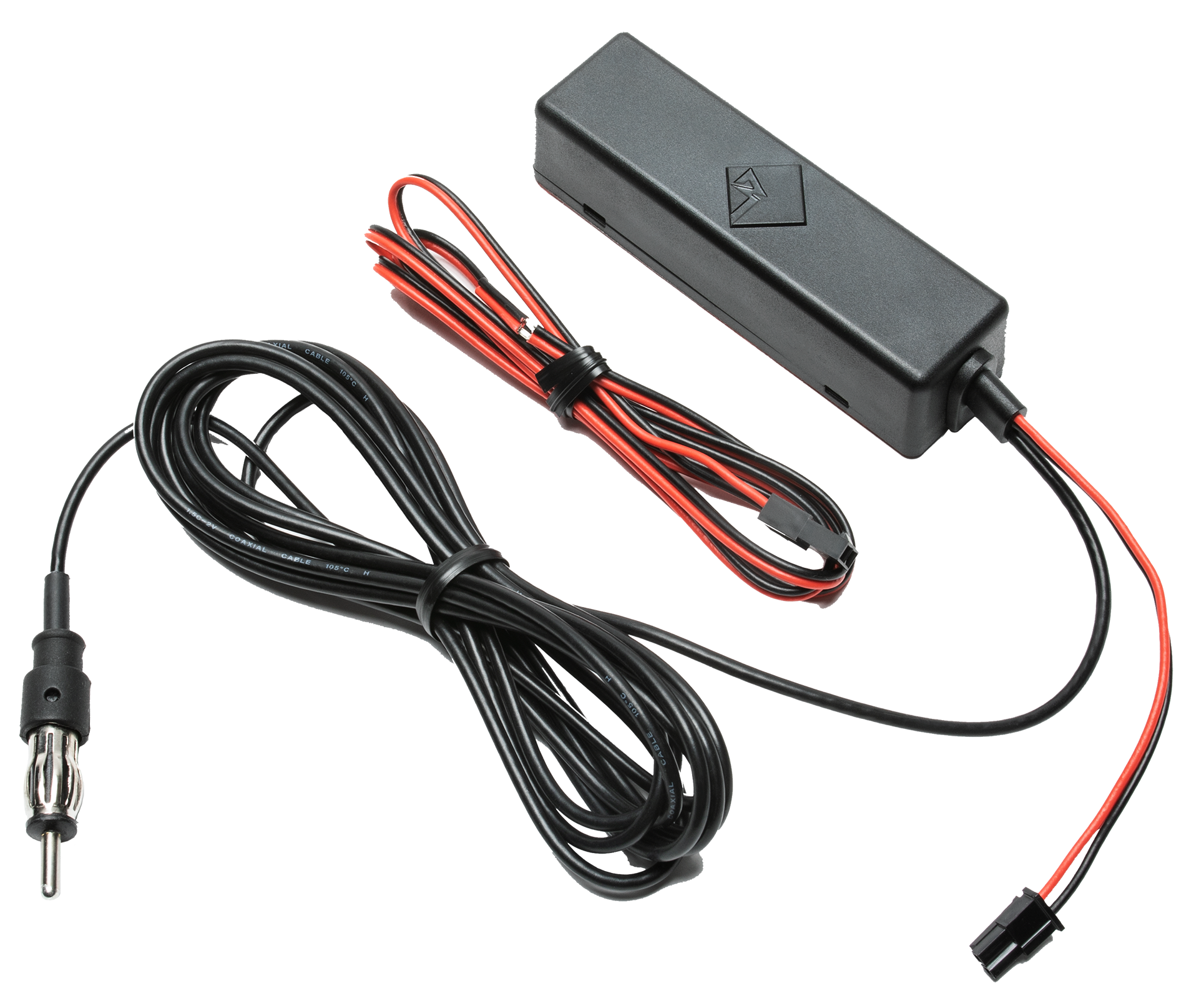

The PMX-ANT is a powered antenna designed to boost AM/FM and WB (weather band) stations. It's universal connectivity allows for use in Marine or UTV installation through a quick power connector.
Universal AM/FM/WB Antenna
12VDC Powered for +20dB of Signal Gain
Omnidirectional
Element Ready IP67 Certified
Double Sided Tape Mounting
Quick Power Connect for Easy Installation
General Specs | |
| Water Resistant | Yes |
| Color | Black |
| Depth (in.) | 3.89 |
| Height (in.) | 0.96 |
| Voltage | 9-16 |
General | |
| Idle Current | < 20 mA |
| Signal Boost Range | Unpowered: 0 dB; Powered: 20 dB |
| Operating Temperature | -30? to 70? (-34? to 21?) |
| Cable Length | Power: 3.58 ft. (109 cm), Antenna: 8.4 ft. (256 cm) |
